美标闸阀

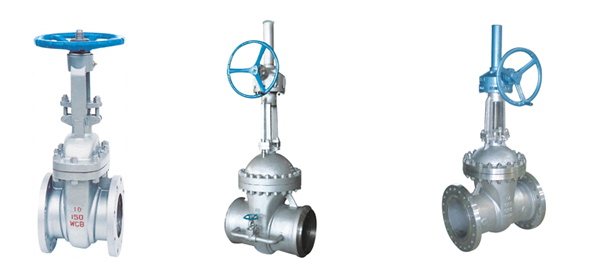

北京高科恒通阀门专业生产美标闸阀，美标法兰闸阀，美标焊接式闸阀，铸钢美标闸阀，锻钢美标闸阀，涡轮传动美标闸阀

产品执行标准

产品性能规范

主要零件材料及性能

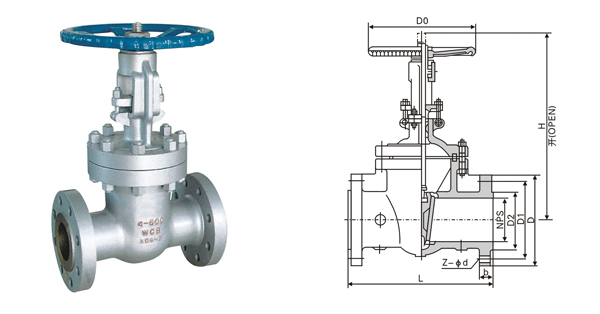

主要外形和连接尺寸                单位Unit：mm

磅级	规格	通径 DN	单位	L	H(全开)	D	D1	D2	b	Z-φd	Do
150Lb	2	50	in	7.00	16.10	6.00	4.75	3.62	0.75	4-0.75	8.00
			mm	178	409	152	120.5	92	19.1	4-19	200
	3	80	in	8.00	20.00	7.50	6.00	5.00	0.94	4-0.75	1.00
			mm	203	570	90	152.5	127	23.9	4-19	250
	4	100	in	9.00	23.20	9.00	7.50	6.19	0.94	8-0.75	10.00
			mm	229	590	229	195.5	157	23.9	8-19	250
	6	150	in	10.50	24.80	11.00	950	8.50	1.00	8-0.88	12.00
			mm	267	630	279	241.5	216	25.4	8-22	300
	8	200	in	11.50	37.80	13.50	11.75	10.62	1212	8-0-88	3.88
			mm	292	960	343	298.5	270	28.5	8-22	350
	10	250	in	13.00	45.60	16.00	14.25	12.75	119	12-1.00	15.70
			mm	330	1158	406	362	324	30.2	12-25	400
	12	300	in	14.00	54.30	19.00	17.00	15.00	1.25	12-1.00	17.70
			mm	356	1378	483	432	381	31.8	12-25	450
	14	350	in	15.00	60.75	21.00	18.75	16.25	1.38	12-1.12	19.70
			mm	381	1543	533	476.5	413	35	12-29	500
	16	400	in	16.00	68.40	23.50	21.25	18.50	1.44	16-1.12	23.60
			mm	406	1738	597	539.5	470	36.6	16-29	600
	18	450	in	17.00	74.10	25.00	22.75	21.00	1.56	16-1.25	23.60
			mm	432	1959	635	578	533	39.7	16-23	600
	20	500	in	18.00	87.20	27.50	25.00	23.00	1.69	20-1.25	26.80
			mm	457	2214	698	635	584	42.9	20-32	680
	24	600	in	20.00	102-3	32.00	29.50	27.25	1.88	20-1.38	29.90
			mm	508	2599	813	749.5	692	47.7	20-38	760
	30	750	in	24.00	125.3	38.75	36.00	33.75	2.94	28-1.38	36.00
			mm	610	3183	985	914	857	74.5	28-35	915
	36	900	in	28.00	147.00	46.00	42.75	40.25	3.56	32-1.62	36.00
			mm	711	3737	1170	1086	1022	90.5	32-41	915

主要外形和连接尺寸               单位Unit：mm

磅级	规格	通径	单位	L	H(全开)	D	D1	D2	b	Z-φb	D0
300Lb	2	50	in	8.50	16.70	6.5	5.00	3.62	0.88	8-0.75	8.0
			mm	216	424	165	127	92	22.3	8-19	200
	3	80	in	11.15	21.00	8.25	6.62	5.00	1.12	8-0.88	10
			mm	283	535	210	168	127	28.5	8-22	250
	4	100	in	12.00	24.20	10.0	7.88	6.19	1.25	8-0.88	10
			mm	305	615	254	200	157	31.8	8-22	250
	6	150	in	15.87	31.30	12.50	10.62	8.50	1.44	8-0.88	14
			mm	403	795	318	270	216	36.6	12-22	350
	8	200	in	16.50	39.90	15.0	13.0	10.62	1.62	12-1.0	15.7
			mm	419	1012	381	330	270	41.3	12-25	400
	10	250	in	18.00	48.50	17.50	15.25	12.75	1.88	16-1.12	17.7
			mm	457	1231	444	387.5	324	47.7	16-29	450
	12	300	in	19.75	57.0	20.50	17.75	15.00	2.00	16-1.25	19.7
			mm	502	1450	521	451	381	50.8	16-32	500
	14	350	in	30.00	64.8	23.00	20.25	16.25	2.12	20-1.25	23.6
			mm	762	1645	584	514.5	413	54.0	20-32	600
	16	400	in	33.00	72.50	25.50	20.25	18.50	2.25	20-1.38	23.6
			mm	838	1814	648	571.5	470	57.2	20-35	600
	18	450	in	36.00	76.50	28.00	24.75	21.00	2.38	24-1.38	26.8
			mm	914	1943	711	628.5	533	60.4	24-35	680
	20	500	in	39.00	84.80	30.50	27.0	23.00	2.50	24-1.38	38
			mm	991	2154	775	686	584	63.5	24-35	760
	24	600	in	45.00	100.50	36.0	32.0	27.25	2.75	24-1.62	36
			mm	1143	2553	914	813	692	69.9	24-41	915

磅级	规格	通径	单位	L	H(全开)	D	D1	D2	b	Z-φb	D0
600Lb	2	50	in	11.50	18	6.5	5.00	3.62	1.0	8-0.75	10
			mm	292	458	165	127	92	25.4	8-19	250
	3	80	in	14.00	22.50	8.25	6.62	5.00	1.25	8-0.88	10
			mm	356	570	210	168	127	31.8	8-22	250
	4	100	in	17.00	27.2	10.75	8.50	6.19	1.5	8-1.0	14
			mm	432	390	273	216	157	38.1	8-25	350
	6	150	in	22	35.8	14	11.50	8.50	1.88	12-1.12	18
			mm	559	910	356	292	216	47.7	12-29	450
	8	200	in	26.00	41.9	16.5	13.75	10.62	2.19	12-1.25	19.7
			mm	600	1064	419	349	270	55.6	12-32	500
	10	250	in	31.00	49.5	20	17.00	12.75	2.5	16-1.38	23.6
			mm	787	1257	508	432	324	63.5	16-35	600
	12	300	in	33	57.8	22	19.25	15.00	2.62	20-1.38	26.8
			mm	838	1468	559	489	381	66.7	20-35	680
	14	350	in	35	63.9	23.75	20.75	16.25	2.75	20-1.50	26.9
			mm	889	1623	603	527	413	69.9	20-38	760
	16	400	in	39	71.5	27	23.75	18.50	3.0	20-1.62	26.9
			mm	991	1816	686	603	470	76.2	20-41	760
	18	450	in	43	82.7	29.25	25.75	21.00	3.25	20-1.75	36
			mm	1092	21.00	743	654	533	82.6	20-45	915
	20	500	in	47	88.6	32	28.5	23.00	3.5	24-1.75	37.4
			mm	1194	2250	813	724	584	88.9	24-45	950
	24	600	in	55	107.5	37	33.0	27.25	4.0	24-2.0	39.4
			mm	1397	2730	940	838	692	102	24-51	1000
